Distribution Boards

Distribution Boards

DB is available in a variety of designs

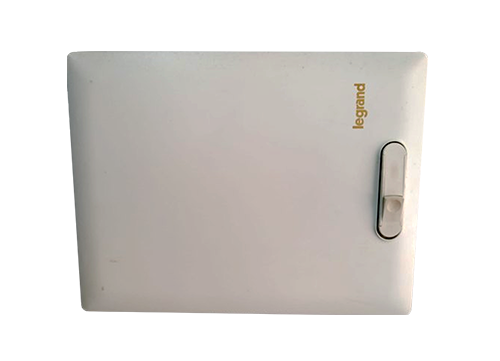

SPN DB's

For DX3 MCB, Isolator, RCCB and RCBO
  • Single door, Double door
  • Suitable for Flush Mounting and Surface Mounting
  • With 100 A Copper Busbar
  • With Neutral bar, Earthbar and Cable ties for Cable management
  • Fully shrouded Neutral bars
  • Prefitted masking sheet
  • Reversible Door for IP 43 & IP 54 DB’s

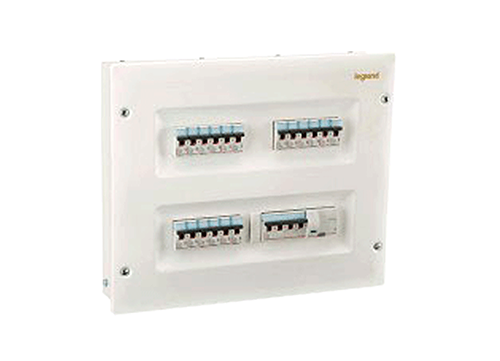

ETPN DB's

For DX3 MCB, Isolator, RCCB and RCBO
  • Double door
  • Suitable for Flush Mounting and Surface Mounting
  • With Neutral bar, Earthbar and Cable ties for Cable management
  • Fully insulated busbar & shrouded Neutral bars
  • Improved Pan assembly for ease of installation
  • With provision for FP MCB/Isolator/RCCB/RCBO as incomer and SP MCB’s as outgoing
  • Can be converted to PPI DB at site using conversion kit

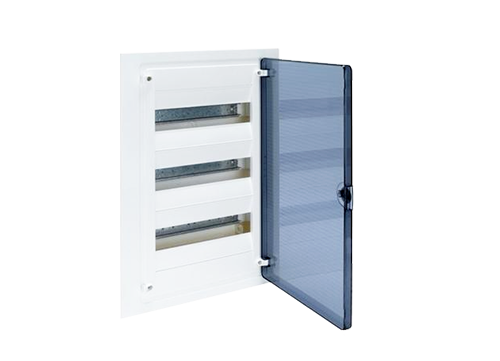

Flexy DB

  • Suitable for Flush Mounting and Surface Mounting
  • Completly flexible to organise the distribution as per site requirements
  • Busbars to be selected as per distribution requirements
  • With Neutral and Earth bar
  • Fully shrouded Neutral bars
  • Improved Pan assembly for ease of installation
  • Prefitted masking sheet
  • Reversible door for IP 43

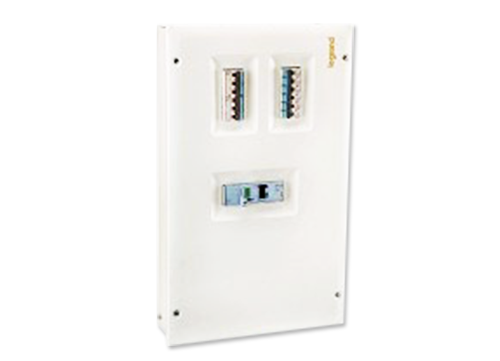

VTPN DB's

For DX3 MCB, Isolator, RCCB and RCBO
  • Double door
  • Suitable for Flush Mounting and Surface Mounting
  • Fully insulated busbar & shrouded Neutral bars
  • Improved Pan assembly for ease of installation
  • Prefitted masking sheet
  • Reversible Door for IP 43 & IP 54 DB’s
  • With provision for FP MCB/Isolator/RCCB/RCBO as incomer and SP/TP MCB’s as outgoing

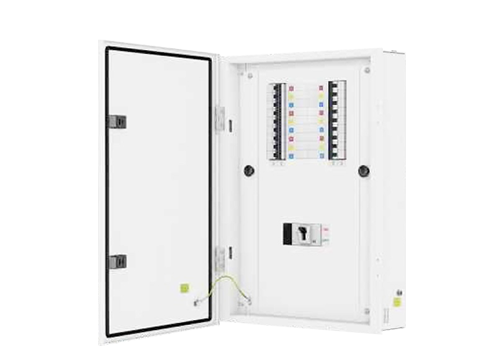

VTPN MCCB DB's

For 160A and 250A MCCB
  • Suitable for Flush Mounting and Surface Mounting
  • With 2 Neutral bar, 2 Earthbar and Cable ties for
  • Cable management
  • Fully insulated busbar & shrouded Neutral bars
  • Improved Pan assembly for ease of installation
  • Prefitted masking sheet
  • Reversible Door for IP 43 & IP 54 DB’s
  • With provision for DPX³ 250 MCCB as incomer and SP/TP MCB’s as outgoing

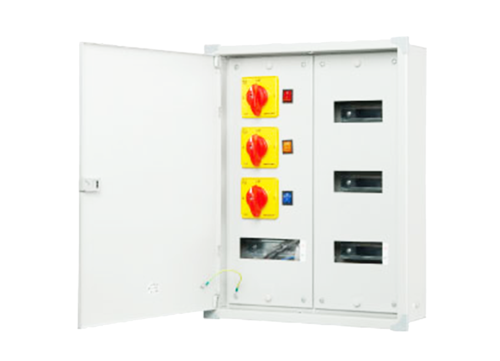

TPN Phase Selector DB'S

For DX3 MCB, Isolator, RCCB and RCBO
  • With inbuilt 3 nos of 63 A Phase selector switches and 3 Nos Piano Switches
  • Suitable for Flush Mounting and Surface Mounting
  • With 100 A Copper Busbar for each phase
  • With Neutral bar, Earthbar and Cable ties for Cable management
  • Fully insulated busbar & shrouded Neutral bars
  • With provision for FP MCB/Isolator/RCCB/RCBO as incomer and SP MCB’s as outgoing

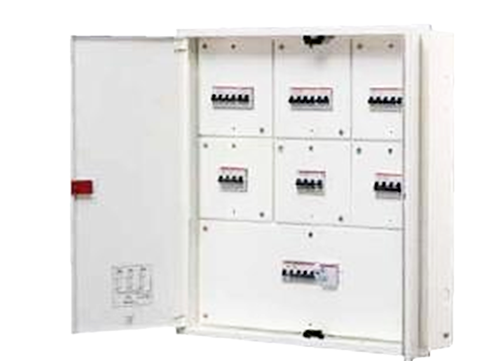

TPN 7 Segment DB's

For DX3 MCB, Isolator, RCCB, RCBO and MCCB
  • As per IEC 61439-3
  • Separate compartment for incomer, sub-incomer & outgoing devices
  • Suitable for Flush Mounting and Surface Mounting
  • With 100 A Copper Busbar for each phase
  • Fully insulated busbar & shrouded Neutral bars
  • With provision for FP MCB/Isolator/RCCB/RCBO as incomer, DP RCCB/RCBO as sub incomer and SP MCB’s as outgoing
  • Supplied with wire set

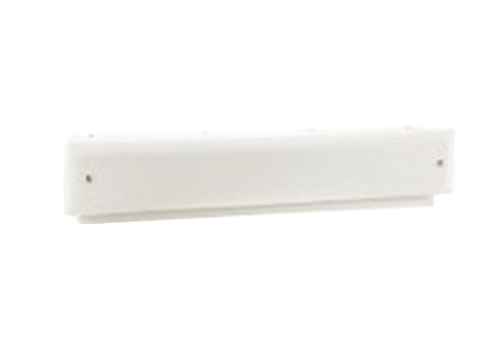

Cable End Box

For DB’s
  • Useful for keeping extra cables
  • Possible to mount on the top or bottom of the DB
  • Provision for mounting terminal blocks
  • Can be used as a terminal box adaptor also

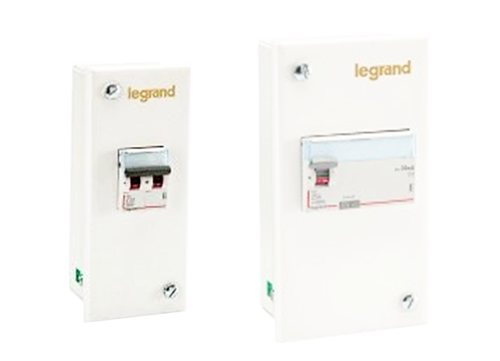

Metal Enclosure

For MCB, RCCB, RCBO, DPX³ MCCB’s
  • As per IEC 61439-3
  • For independent mounting of DX³ MCB, RCCB, RCBO, DPX³ 160, DPX³ 250, DPX³ 630 & DRX MCCB’s
  • #IK 08

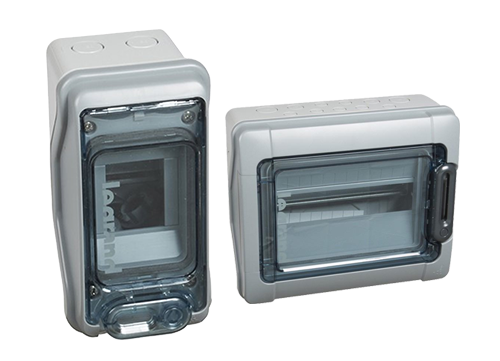

Plexo Boxes Or Waterproof Boxes

For MCB’s, RCCB, RCBO
  • For independent mounting of  MCB, RCCB, RCBO
  • Suitable for hotel kitchens, food stores, laboratories, clean rooms
